Drone Signal Booster: Balance Power and Cost
A drone signal booster bridges long-distance communication gaps without inflating operational hardware budgets. The Sunhans 4000mW Dual-Band WiFi Booster delivers reliable dual-frequency amplification for commercial and recreational UAVs. Consequently, drone operators maintain clear long-range drone transmission while meeting lead-free compliance (RoHS standard) for environmental safety. Operators achieve continuous control link integrity by exploring our product-category solutions.
Commercial drone pilots face constant RF interference during long-range inspection and mapping missions. Video feed dropouts and signal loss risk severe payload crashes and data corruption. Therefore, operators require affordable bi-directional amplification systems that perform reliably in challenging outdoor environments.
Critical Operational Challenges in UAV Signal Transmission
Signal Loss in Urban and High-Interference Environments
Dense urban structures and cellular towers flood the airspace with crowded RF signals. Standard drone transmitters suffer severe packet loss under heavy electromagnetic interference. A high-power drone signal booster overcomes background noise by delivering strong 36dBm output power. As a result, operators navigate around metallic obstacles without losing critical control link integrity.
Reduced Video Feed Quality During Long-Range Operations
High-resolution inspection mapping requires uninterrupted real-time video streaming back to ground stations. Standard remote controllers struggle to maintain 80MHz channel widths over extended distances. Using a 4000mW RF power amplifier stabilizes 5.8GHz channels for high-bandwidth data transfers. Consequently, inspection teams view clear 1080P video feeds without frame freezing.
Heavy and Power-Hungry Signal Extenders Add Payload Weight
Bulky signal repeaters drain drone battery reserves quickly and reduce total flight duration. Commercial pilots need lightweight amplification hardware that mounts easily on ground stations or UAV frames. The compact Sunhans booster weighs only 318g while offering high heat dissipation. Thus, pilots extend operational transmission range without compromising vehicle battery efficiency.
Dual-Band Technical Architecture: The Sunhans Solution

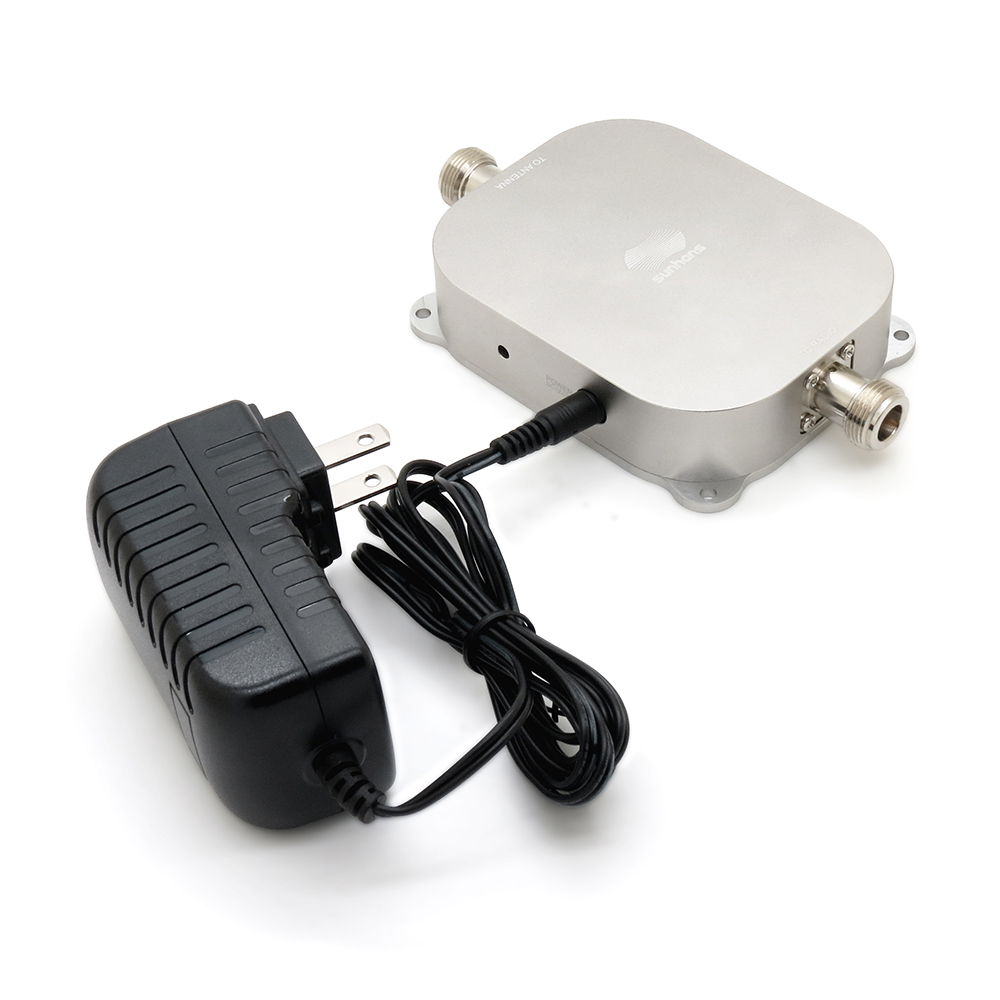

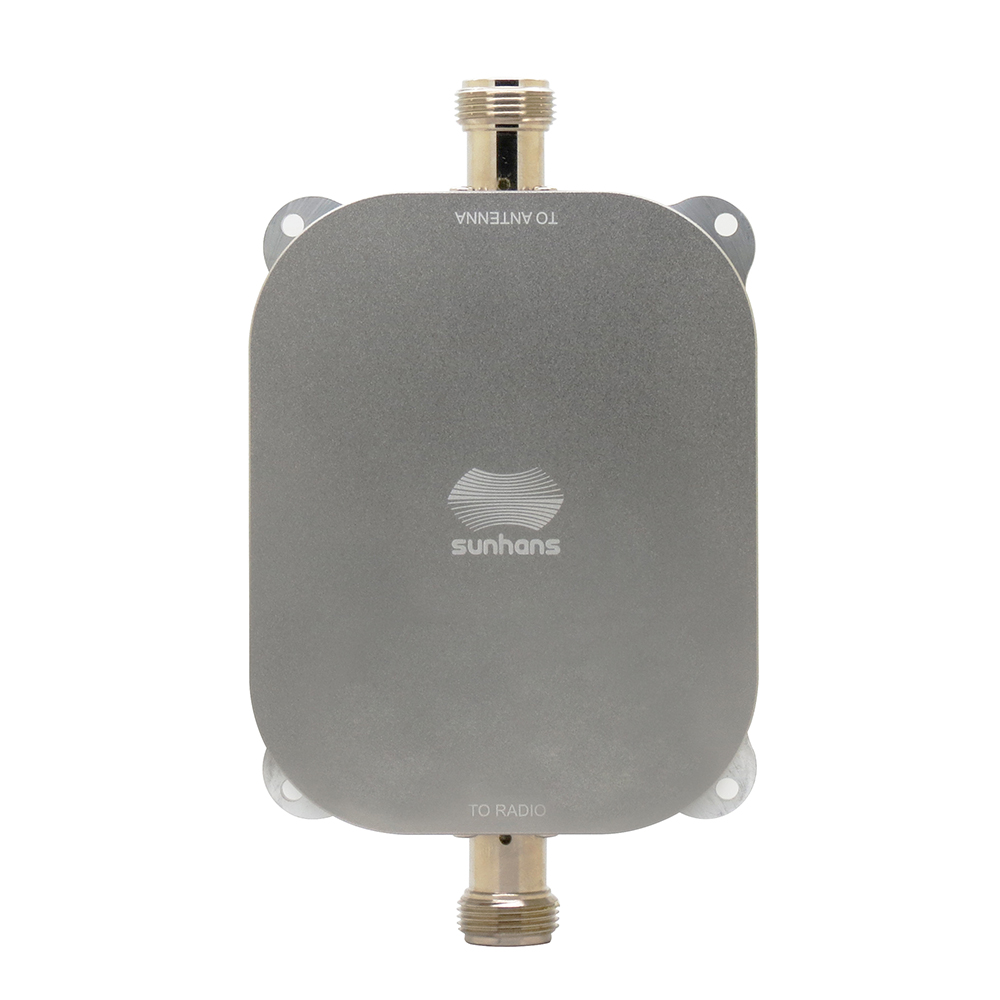

The Sunhans 4000mW booster offers industrial-grade bi-directional signal amplification across dual operating frequencies. The module integrates seamless plug-and-play N-K female connectors for rapid field deployment without software configuration.
Advanced Dual-Band Bi-Directional Amplification
The Sunhans booster operates simultaneously on 2.4GHz and 5.8GHz frequency bands. The 2.4GHz band penetrates solid obstacles and provides maximum transmission distance for long-range flights. Meanwhile, the 5.8GHz band delivers fast data rates and avoids crowded urban spectrum channels.
Furthermore, the unit supports IEEE 802.11a/n/ac standards and 80MHz channel widths effortlessly. The system applies Time Division Duplex (TDD) technology for balanced bi-directional operation. Transmit gain ranges between 16dB and 19dB, while receiver gain remains below 12dB with a low ≤3.5dB noise figure. This combination secures stable bidirectional data flows across varying flight altitudes.
Industrial-Grade Thermal Management and Durability
High RF power output generates significant thermal energy during continuous flight operations. The Sunhans system utilizes a precision CNC aluminum alloy casing for rapid heat dissipation and anti-interference shielding. Consequently, the module operates reliably in extreme temperatures ranging from -40°C to +70°C. Review our technical installation framework inside our technical-guide manual.
| Technical Parameter / Feature | Sunhans 4000mW Dual Band Booster | Standard Consumer Signal Booster |
| Operating Frequencies | Dual-Band (2.4 ~ 2.5GHz & 5.0 ~ 5.8GHz) | Single-Band (2.4GHz Only) |
| Maximum Output Power | 4000mW (36dBm) RF Output Power | 1000mW to 2000mW Maximum Output |
| Channel Width Support | 20MHz, 40MHz, 80MHz Channels | 20MHz or 40MHz Channels Only |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) | 0°C to +40°C (Standard Indoor) |
| Chassis Construction | Heavy-Duty CNC Aluminum Alloy Shell | Plastic Moulded Enclosure |
| Receiver Noise Figure | ≤3.5dB Typical Low Noise Figure | ≥5.0dB Noise Figure |
| Module Dimensions & Weight | 13cm x 7.7cm x 2.4cm; 318g Total Weight | Bulky Desk Units (>600g) |
| Connector Interface Type | Dual N-K Female Connectors | Standard SMA Connectors |
Optimizing Field Deployment for Commercial UAV Systems
Integrating an industrial UAV signal repeater elevates flight safety during critical surveillance missions. Ground station operators attach the booster between remote controllers and directional tracking antennas easily.
In addition, dual LED indicators provide real-time status updates for system power and RF activity. The 12V/2A DC power input works smoothly with portable field battery packs during remote operations. Thus, ambulatory inspection crews establish high-power communications without carrying generator equipment.
Investing in a high-performance drone signal booster maximizes control range while controlling operational hardware costs. Bi-directional RF amplification safeguards telemetry data integrity and prevents costly drone losses. High-power signal boosting empowers commercial operators to conduct long-range UAV missions confidently.
